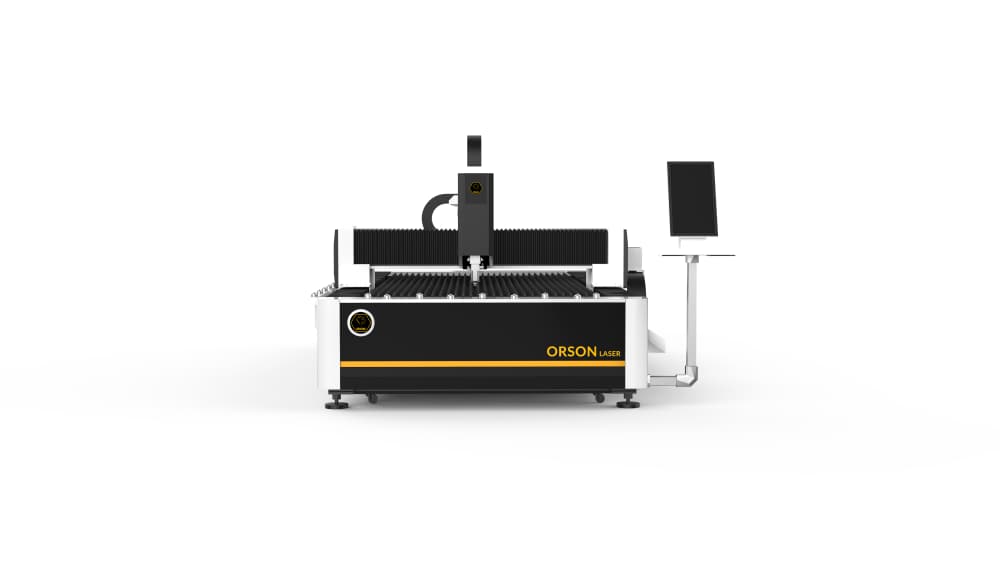

OAE Series Economy Fibre Laser Cutting Machine
Industrial Performance Without the Premium Price
The ORSON OAE Economy Fibre Laser combines proven industrial components, including a Raycus laser source, Raytools BM110 cutting head, XC3000S control system and S&A chiller, to deliver reliable cutting performance at an accessible price. Designed for South African manufacturers, it offers low running costs, dependable operation and local after-sales support.
Why Choose the OAE Series
Affordable Fibre Laser Cutting for South African Fabricators
The OAE Series is ORSON LASER's economy open bed fibre laser, designed for businesses that want industrial cutting quality while keeping capital investment under control. It suits general steel fabrication, sheet metal manufacturing, signage, agricultural equipment and contract manufacturing, whether you are buying your first CNC laser or expanding an existing cutting operation.
The OAE3015 has a 3048 × 1524 mm working area on a tube-and-plate welded bed, with a choice of 3 kW or 6 kW Raycus laser source. The Raytools BM110 cutting head, Raytools XC3000S controller, Innovance motors and S&A chiller are proven industrial components, selected for dependable operation, low running costs and practical maintenance.
OAE or OA?
Choose the OAE when value is the priority. For high-volume production, the OA Series adds a BOCI BLT310 auto-focus head, FSCUT 2000E control and Bochu servo motors, doubling maximum acceleration to 2.0 g and speed to 200 m/min.
Need an enclosed machine with an automatic exchange table? See the OC Series or compare all ORSON machines.
OAE Series Sizes & Laser Options
OAE3015 Specifications
| Specification | 3 kW | 6 kW |
|---|---|---|
| Machine Type | Flat Sheet Fibre Laser | |
| Bed Type | Open Bed – Manual Loading | |
| Bed Construction | Tube and Plate Welded | |
| Working Area | 3048 mm × 1524 mm | |
| Machine Weight | ± 1700 kg | |
| Laser Source | Raycus 3000 W | Raycus 6000 W |
| Laser Head | Raytools BM110 | |
| Controller | Raytools XC3000S | |
| Motor Brand | Innovance | |
| Motor Size | 850 W / 400 W | |
| Max Acceleration | 1.0 g | |
| Max Speed | 100 m/min | |
| Positioning Accuracy | ±0.03 mm | |
| Repeatability | ±0.02 mm | |
OAE3015 Cut Parameters
| Material | Thickness | Cut Speed (m/min) |
|---|---|---|
| Carbon Steel | 1 mm | 28 – 35 |
| Carbon Steel | 16 mm (Max) | 0.6 – 0.7 |
| Stainless Steel | 1 mm | 28 – 35 |
| Stainless Steel | 8 mm (Max) | 1 – 1.2 |
| Aluminium | 1 mm | 25 – 30 |
| Aluminium | 6 mm (Max) | 1.5 – 2 |
| Material | Thickness | Cut Speed (m/min) |
|---|---|---|
| Carbon Steel | 1 mm | 45 – 60 |
| Carbon Steel | 22 mm (Max) | 0.5 – 0.6 |
| Stainless Steel | 1 mm | 45 – 60 |
| Stainless Steel | 16 mm (Max) | 0.5 – 0.6 |
| Aluminium | 1 mm | 45 – 60 |
| Aluminium | 12 mm (Max) | 0.8 – 1 |
All parameters rated for production.
Included & Optional Equipment
Included
- Material Collection Trolley
- Remote Control
- Safety Glasses (1× Set)
- Voltage Stabiliser (50 kVA)
- Touch Screen
- Fire Bricks
Optional
- Automated Lubrication (X, Y)
- Extraction Fan (Zonal System)
- Electronics Aircon
- Air Compressor (15 kW, 16 Bar, 42 CFM, Incl. Dryer)
OAE3015 Power & Gas Requirements
Power – 3 kW
- Rated Power
- 24 kW (Excl. Air Compressor)
- Input Voltage
- 380 V AC 3-PH 50 Hz
- Input Current
- 46 A (60 A Breaker Recommended)
Power – 6 kW
- Rated Power
- 39 kW (Excl. Air Compressor)
- Input Voltage
- 380 V AC 3-PH 50 Hz
- Input Current
- 83 A (100 A Breaker Recommended)
Gas Requirements
- Compressed Air
- 16 Bar
- Nitrogen
- 18 – 23 Bar
- Oxygen
- 3 – 6 Bar
OAE Series Questions
What thickness can the OAE3015 cut?
With the 3 kW source, the OAE3015 cuts carbon steel up to 16 mm, stainless steel up to 8 mm and aluminium up to 6 mm. The 6 kW source increases this to 22 mm carbon steel, 16 mm stainless steel and 12 mm aluminium. See the cut parameters above for production cutting speeds.
What power supply does the OAE3015 need?
Both versions run on 380 V AC three-phase 50 Hz. The 3 kW machine is rated at 24 kW with a 46 A input current (60 A breaker recommended). The 6 kW machine is rated at 39 kW with an 83 A input current (100 A breaker recommended). These figures exclude the air compressor.
Which cutting gases does the OAE3015 use?
Compressed air at 16 bar, nitrogen at 18 – 23 bar and oxygen at 3 – 6 bar. An optional 15 kW, 16 bar air compressor with dryer is available.
What is the difference between the OAE and OA Series?
Both are open bed sheet lasers with the same 3048 × 1524 mm working area. The OAE uses a Raytools BM110 head, XC3000S control and Innovance motors (1.0 g, 100 m/min). The OA Series steps up to a BOCI BLT310 auto-focus head, FSCUT 2000E control and Bochu servos (2.0 g, 200 m/min) for higher-volume production.
Do you install the machine and train operators?
Yes. ORSON LASER assists with installation and commissioning, trains your operators on machine operation, cutting parameters and maintenance, and provides ongoing technical support and advice on cutting consumables.
